Appendix 9

FFCC del Estado wagon diagrams

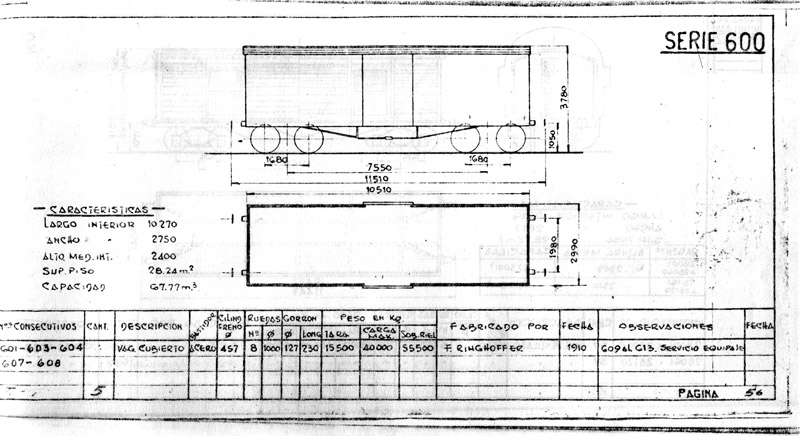

Nesseldorf/Ringhoffer 40 tonne capacity box cars / 'cubiertos'.

item8

'Cubiertos reconstructed by San Antonio Oeste workshops on Nesseldorf/Ringhoffer plataformas.

item9

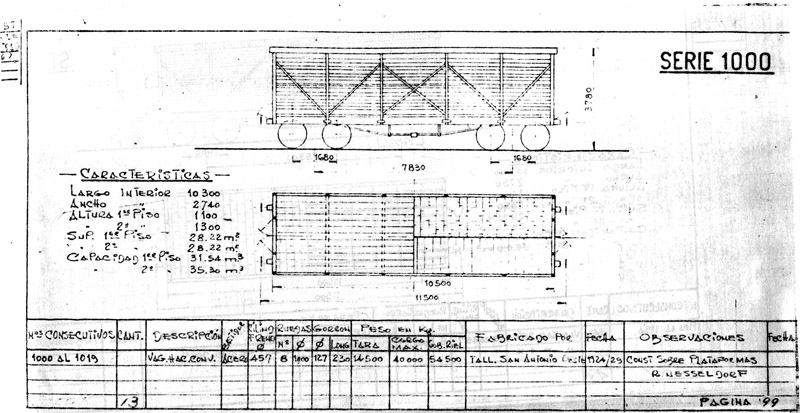

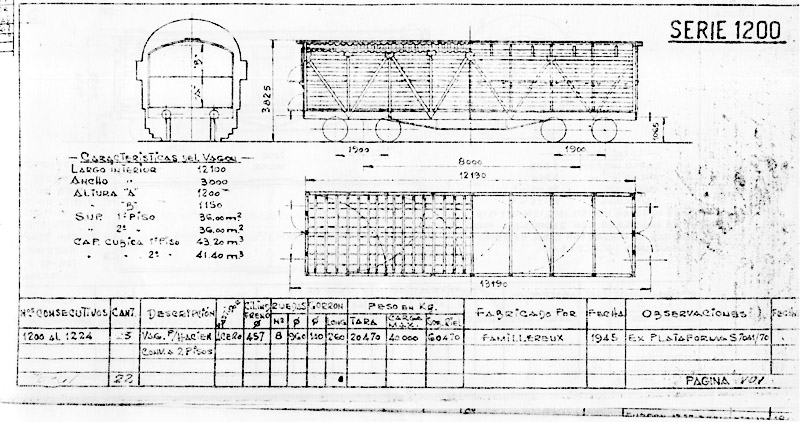

Hacienda wagons (double deck) reconstructed on Familleureux plataformas in 1945.

item10

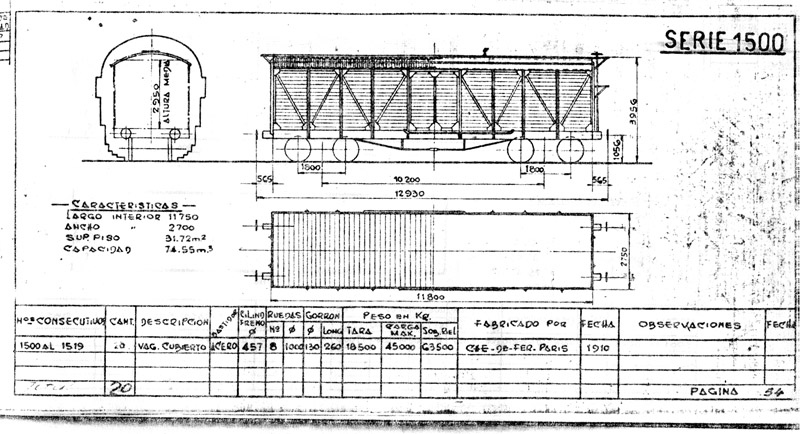

45 tonne vans built by Cie de Fer, Paris ???, in 1910.

item11

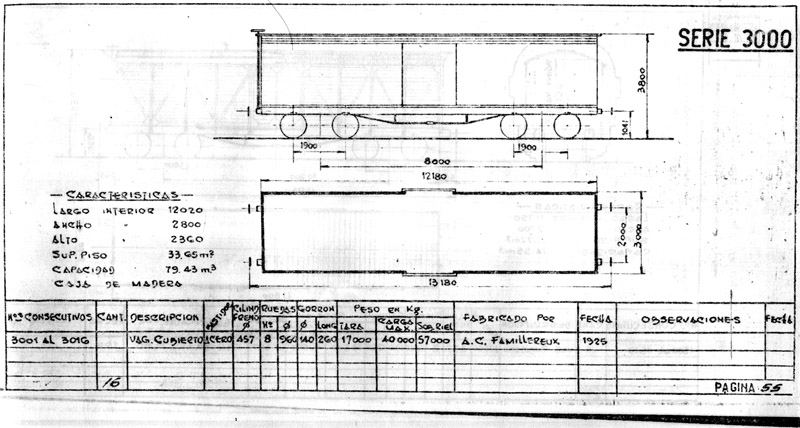

40 tonne vans built by Familleureux 1925.

item12

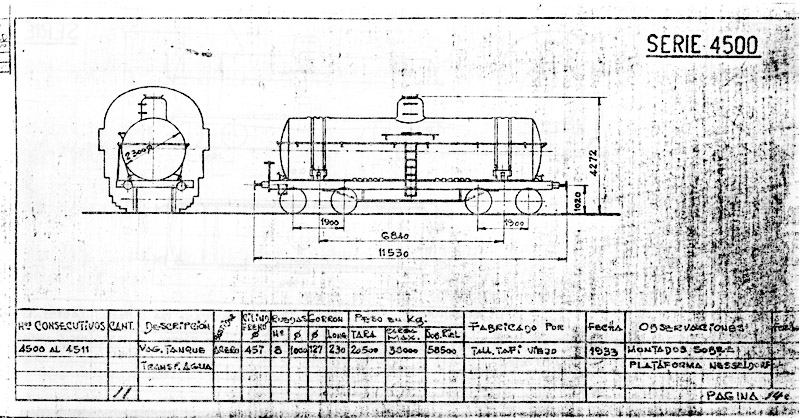

Nesseldorf/Ringhoffer plataformas rebuilt at Tafi Viejo workshops into tank wagons in 1933.

item13

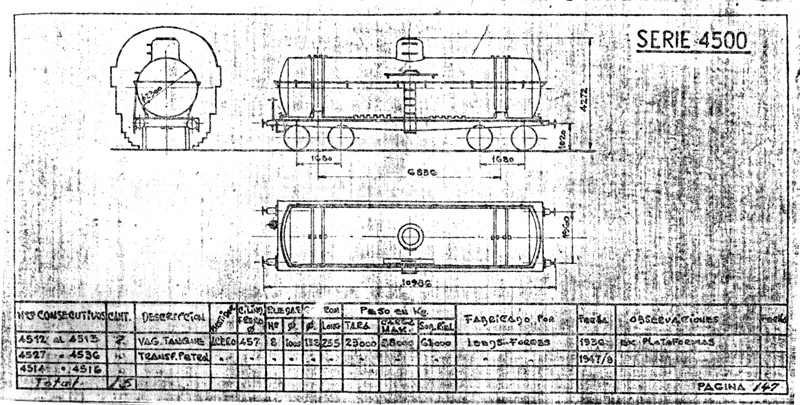

Leeds Forge plataformas rebuilt into tank wagons in 1936 and 1947-8.

a

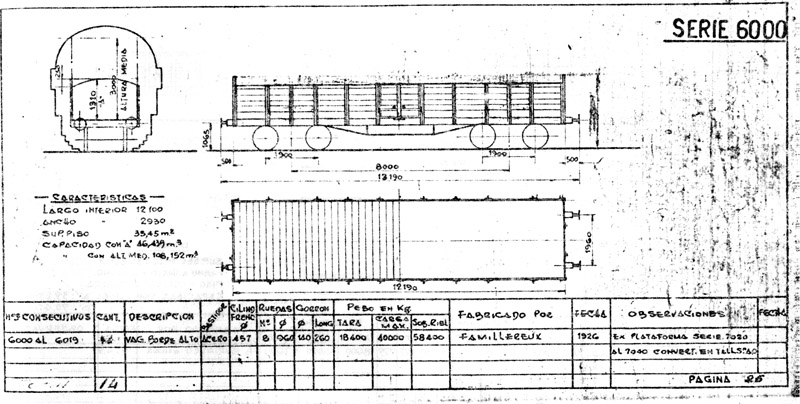

Familleureux plataformas rebuilt into 'bordes altos'.

item14

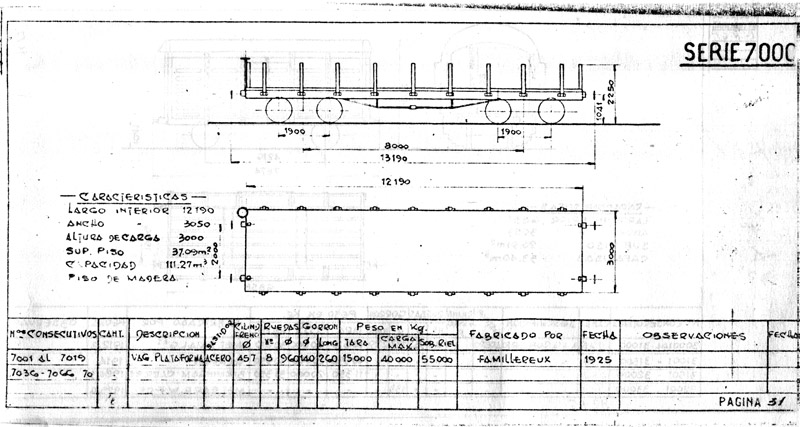

Familleureux plataformas built 1925.

item15

Reference:
Diagrams scanned from FCE diagram book by Señor Sergio Barral.

19-8-11
