Appendix 4

Sketches and data from Chilean state railways diagram book

Please note that the sketches are diagrammatic only, and in some respects are almost caricatures of the actual locos rather than scale drawings. The scans were very kindly supplied by Señor Raul Moroni of Santiago.

1a

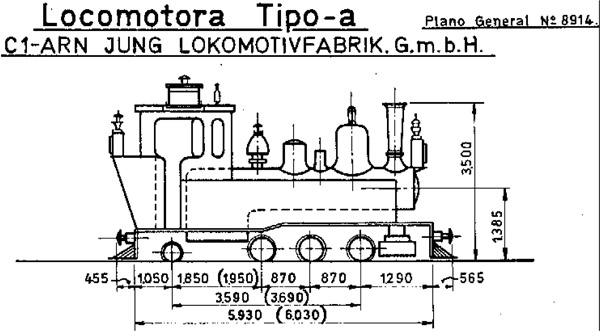

Sketch of class 'a' 0-6-2Ts.

Chiloelocosasketchsmall

1b

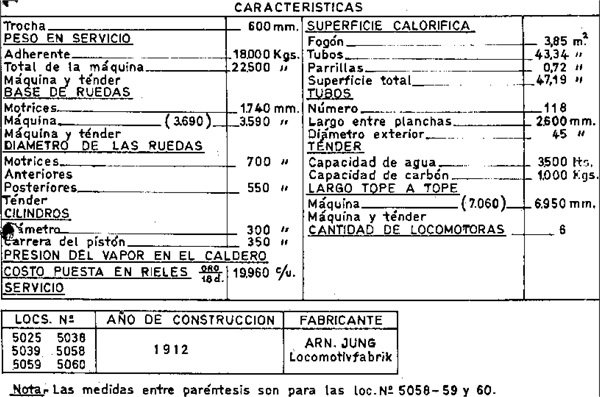

Data for class 'a' 0-6-2Ts.

Chiloelocosadatasmall

2a

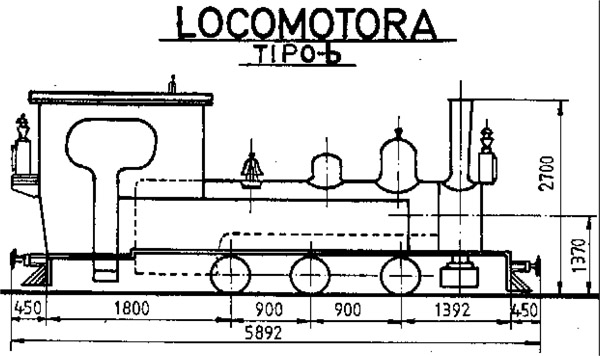

Sketch of class 'b' 0-6-0Ts.

Chiloelocosbsketchsmall

2b

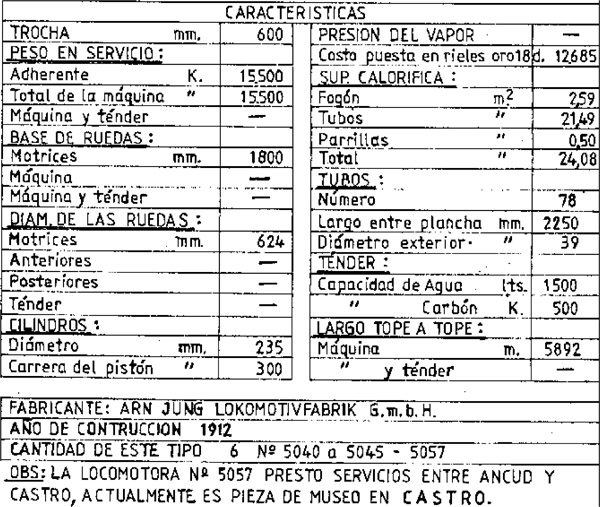

Data for class 'b' 0-6-0Ts.

Chiloelocosbdatasmall

3a

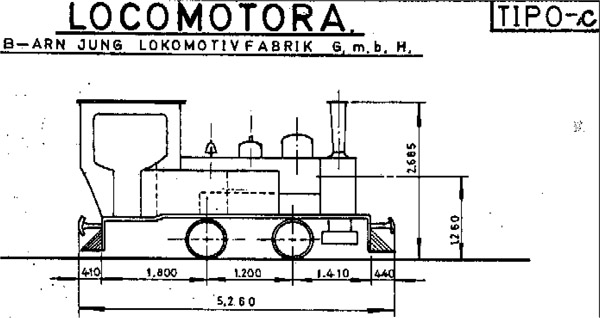

Sketch of class 'c' 0-4-0Ts.

Chiloelocoscsketchsmall

3b

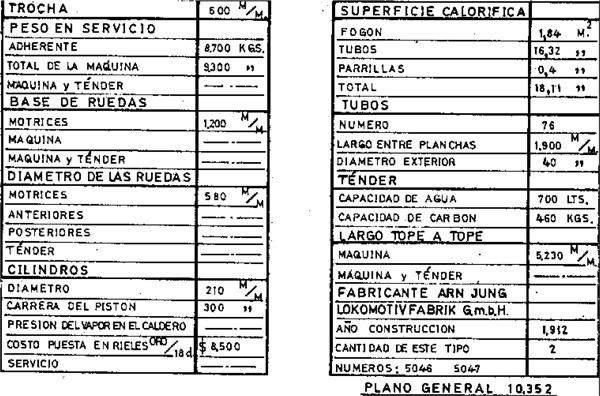

Data for class 'c' 0-4-0Ts.

Chiloelocoscdatasmall

Date of diagram book is unknown.

7-11-10
